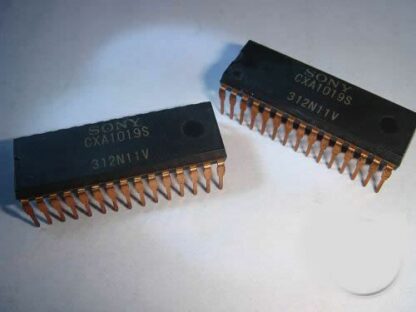

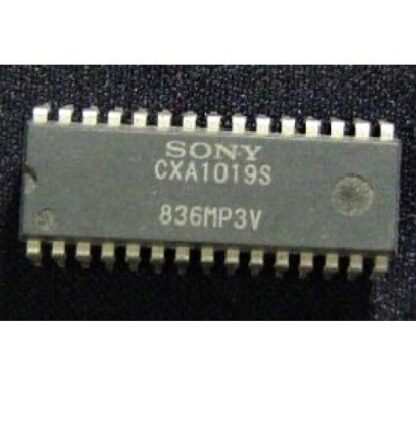

CXA1019S C.I.SONY ORIGINAL CAPSULA SDIP30
Usado en Radio/TV-reception etc.
———————
Linear-IC;

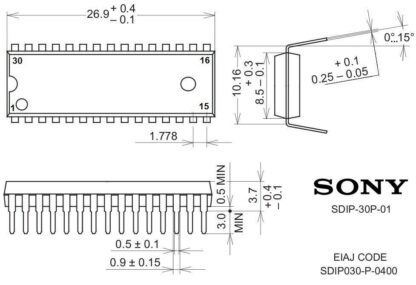

Form/Case/Outline: SDIP-30 CXA1019S)
Type/Application: complete “Single Chip Radio”: FM, AM, NF, tuning LED
driver;
Daten/electr.data: Ub: 2…7.5 V; ; I q: 7…14 mA; Topr: -10 … +60
°C; Po: 0.5 W @ 8 Ohm.
Usado en Radio/TV-reception etc.
———————
Linear-IC;
Form/Case/Outline: SDIP-30 CXA1019S)
Type/Application: complete “Single Chip Radio”: FM, AM, NF, tuning LED
driver;
Daten/electr.data: Ub: 2…7.5 V; ; I q: 7…14 mA; Topr: -10 … +60
°C; Po: 0.5 W @ 8 Ohm.
– CXA1019 is a one-chip FM/AM radio IC designed for radio-cassette tape
recorders and headphone tape recorders, and CXA1019S has the following
functions.
– CXA1019 Features.:
Small number of peripheral components.
Low current consumption (Vcc=3V)
For FM: I0=5.3 mA (Typ.)
– Large output of AF amplifier.;
Vcc=6V, EIAJ output=500mW (Typ.) when load impedance 8Ohm.
– Functions FM section.:
RF amplifier, Mixer and OSC (incorporating AFC variable capacitor).
IF amplifier Quadrature detection
Tuning LED driver
– CXA1019 Structure.:
Bipolar silicon monolithic IC
