Descripción
Fabricante STMicroelectronics
Tipo de elemento semiconductor triac
Tensión de retorno máx.800V
Corriente conductiva máx 25A
Corriente de entrada 50mA
Montaje THT
Tecnología Snubberless™

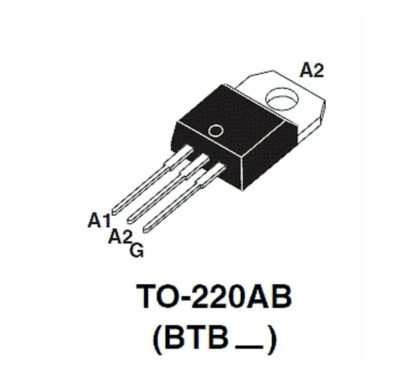

Carcasa TO220AB
Peso bruto 2.043 g
Denominación de fabricante: BTB24-800BWRG
BT A 16 – 600 BW RG (EJEMPLO construcción referencia)
1 – Triac series.: BT
2 – Insulation.:
A = insulated, the BTA series provides voltage insulated tab (rated
at 2500VRMS) complying with UL standards
B = non insulated
( VER https://bit.ly/2Wsdrhq Y https://bit.ly/2Wrpqf9 ) SE REFIERE A
LA PATILLA 2 (A2) CON LA MASA
3 – Current.: 16 = 16A
4 – Voltage.: 600 = 600V, 700 = 700V, 800 = 800V
5 – Sensitivity and type.:
B = 50mA Standard
BW = 50mA Snubberless
C = 25mA Standard
CW = 35mA Snubberless
SW = 10mA Logic Level
