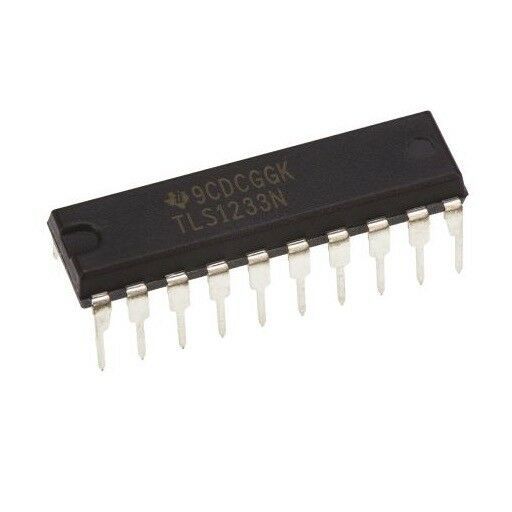

TLS1233N C.I. PDIP20 Pines, Preamplificador de vídeo, alimentación 11 – 13V

8,50 Impuestos incluidos

5 disponibles

Código: 030TLS1233N Categoría:


– Wide Bandwidth . . . Typ 100 MHz at –3 dB
– Three Channels
– 0 V to 4 V, Digital Level-Contrast Control
– 0 V to 4 V, Digital Level-Gain Adjust Control
– 20-Pin Plastic DIP for Small PCB Area Required
– Fewer Peripheral Components Required Than for LM1203 Applications
– Independent CLAMP(+) Adjustment to Each Channel

The TLS1233 is a 100-MHz wide-band video preamplifier system intended
for mid-to-high-resolution RGB (red-green-blue) color monitors. Each
video amplifier (R, G, and B) contains a gain set for adjusting maximum
system gain (AV = 7.8 V/V). The TLS1233 provides digital level-operated
contrast, brightness, and gain
adjustment control. All the control inputs offer high input impedance
and an operation range from 0 V to 4 V for easy interface to the serial
digital buses. Provided in a 20-pin plastic dual-in-line package (DIP),
the TLS1233
integrates most of the external components required to accommodate the
video system.
The TLS1233 operates from a 12-V supply and contains an internal input
bias voltage. Also, the TLS1233
contains the feedback resistor required between output and CLAMP(–) for
dc level holding. The device is characterized for operation from 0°C to
