Descripción

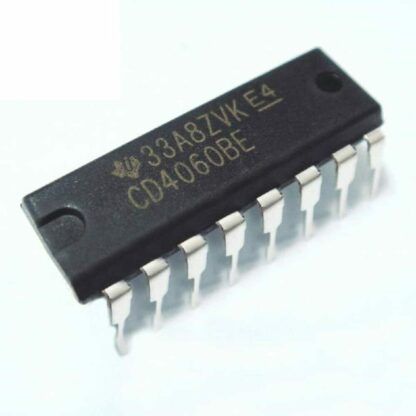

IC CMOS 4060 CD4060BE PDIP-16, Texas Instruments (10 Unidades)
Fabricante TEXAS INSTRUMENTS
Tipo de circuito integrado digital
Clase de circuito integrado contador binario, divisor
Tecnología CMOS
Montaje THT
Carcasa DIP16
Peso bruto 0.967gr
Denominación de fabricante: CD4060BE
The CD4060BE is CMOS 14 stage ripple carry binary counter/divider and
oscillator in 16 pin DIP package. The oscillator configuration allows
design of either RC or crystal oscillator circuits. A reset input on
device resets counter to 0 state and disables oscillator. A high level
on RESET line accomplishes reset function. All counter stages are flip
flops and state of counter is advanced one step in binary order on
negative transition. All inputs and outputs are fully buffered. Schmitt
trigger action on input pulse line permits unlimited input pulse rise
and fall times. The CD4060BE meets all requirements of JEDEC tentative
standard JESD 13B. Typical application includes control counters,
timers, frequency dividers and time delay circuits.
– 12MHz clock rate at 15V
– Fully static operation and common reset
– Buffered inputs and outputs
– Schmitt trigger input pulse line
– 100% tested for quiescent current at 20V
– Standardized, symmetrical output characteristics
– 5V, 10V and 15V parametric ratings
– Supply voltage range from 3V to 18V
– Operating temperature range from -55°C to 125°C
