Descripción

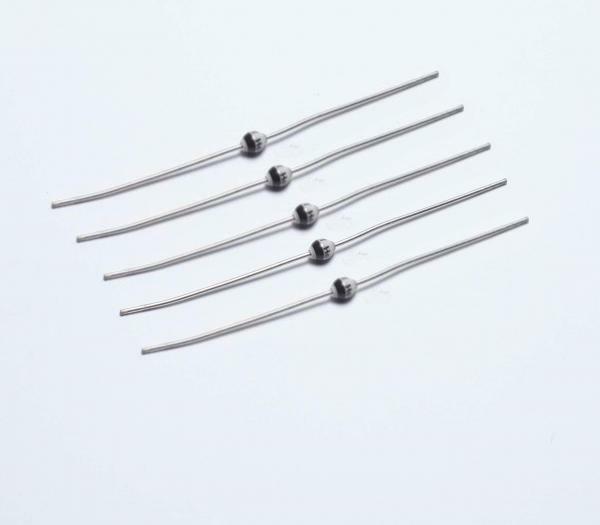

DIODO BYW95C 600V/3A 250ns RAPIDO, CAPSULA SOD-64, PHILIPS (5 unidades)
Fast soft-recovery controlled avalanche rectifier
Rectificador de avalancha controlada de rápida y suave recuperación
Forward Current 3A
Max Operating Temperature 175°C
Max Repetitive Reverse Voltage (Vrrm) 600 V
Min Operating Temperature -65°C
Peak Non-Repetitive Surge Current 70A
Peak Reverse Current 1A
Reverse Recovery Time 250ns

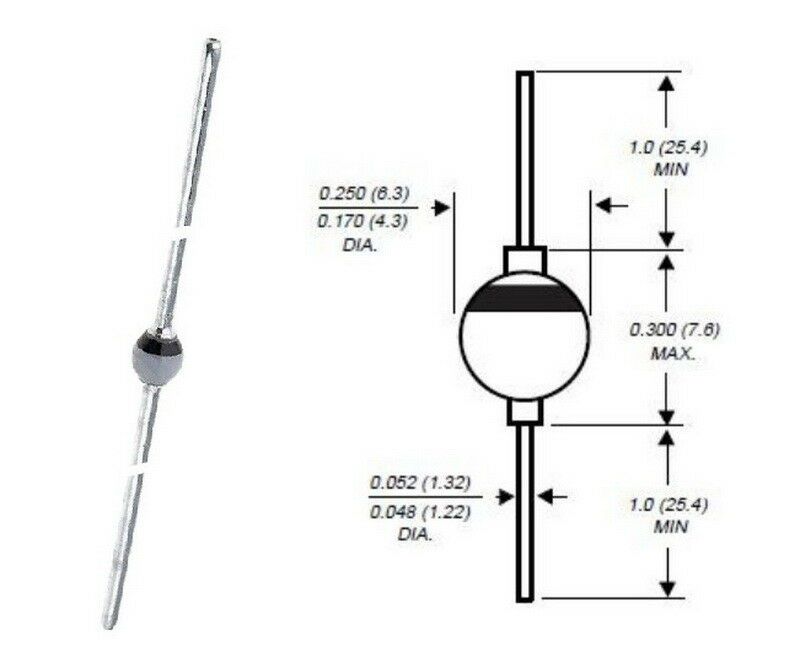

Dimensions
Height 4.5 mm
Length 5 mm
Width 4.5 mm
