Descripción

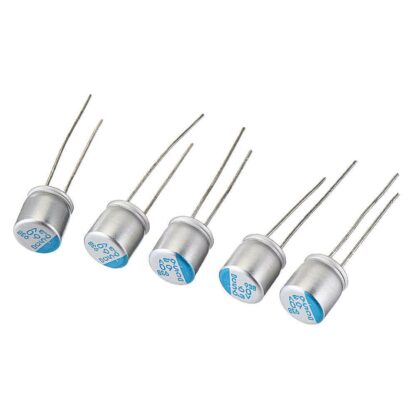

CONDENSADOR ELECTROLITICO 560uF 6,3V 105º, Ø6,3x8mm Polymer Aluminium, NCC Nippon Chemi-Con, PSE Series

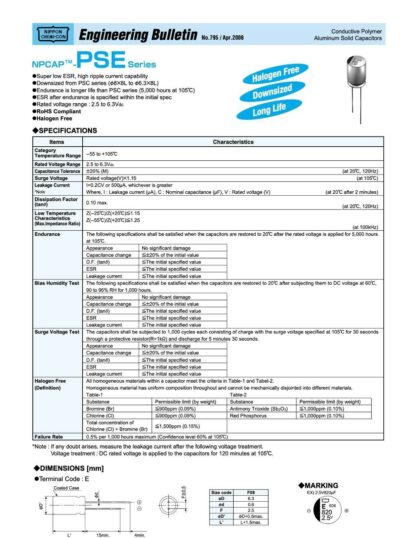

Aluminum – Polymer Capacitors
Manufacturer United Chemi-Con
Series NPCAP™-PSE
Type Polymer
Capacitance 560µF
Tolerance ±20%
Voltage – Rated 6.3V
ESR (Equivalent Series Resistance) 0,008 Ohm
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 4.7A @ 100kHz
Lead Spacing 0.098″ (2.50mm)
Size / Dimension 0.248″ Dia (6.30mm)
Height – Seated (Max) 0.315″ (8.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Manufacturer United Chemi-Con
Series NPCAP™-PSE
Type Polymer
Capacitance 560µF
Tolerance ±20%
Voltage – Rated 6.3V
ESR (Equivalent Series Resistance) 0,008 Ohm
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 4.7A @ 100kHz
Lead Spacing 0.098″ (2.50mm)
Size / Dimension 0.248″ Dia (6.30mm)
Height – Seated (Max) 0.315″ (8.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
